Tooling

Our team at PAC works closely with our clients and their projects to tailor the best solutions for their applications and budgets. We manufacture lay-up tools, fixturing tools, inspection tools, and many other types of tooling.

For composite lay-up tools we determine if they are short-run or long-run production tools and offer many options accordingly. We make sure there is accommodation for the CTE values in the tooling to make sure the final product comes out precise and to specifications.

PAC uses only the best building materials out there to maintain quality across the board.

  • Tool design and engineering
  • CAD modeling and Drawing Creation
  • Stress analysis

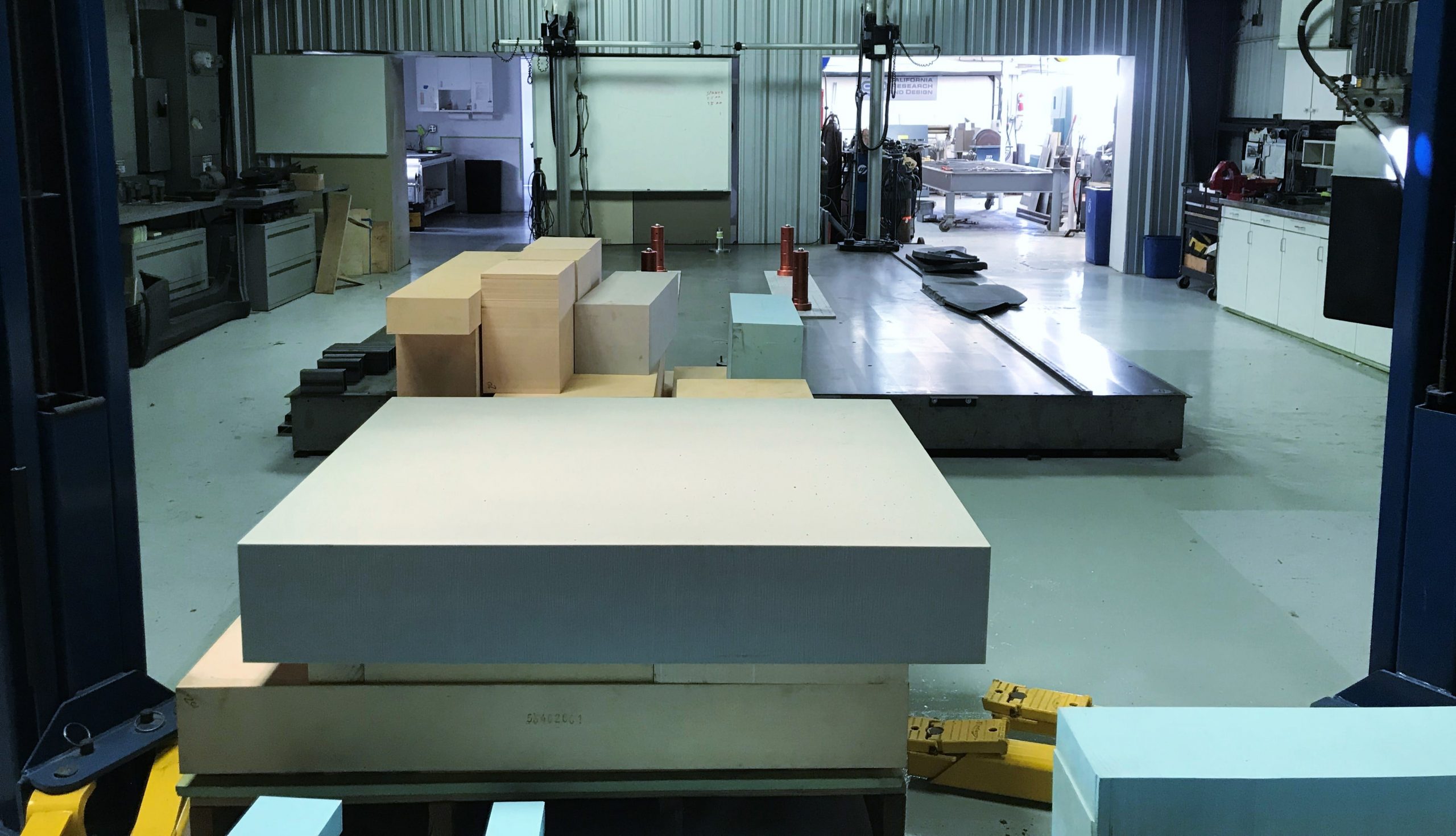

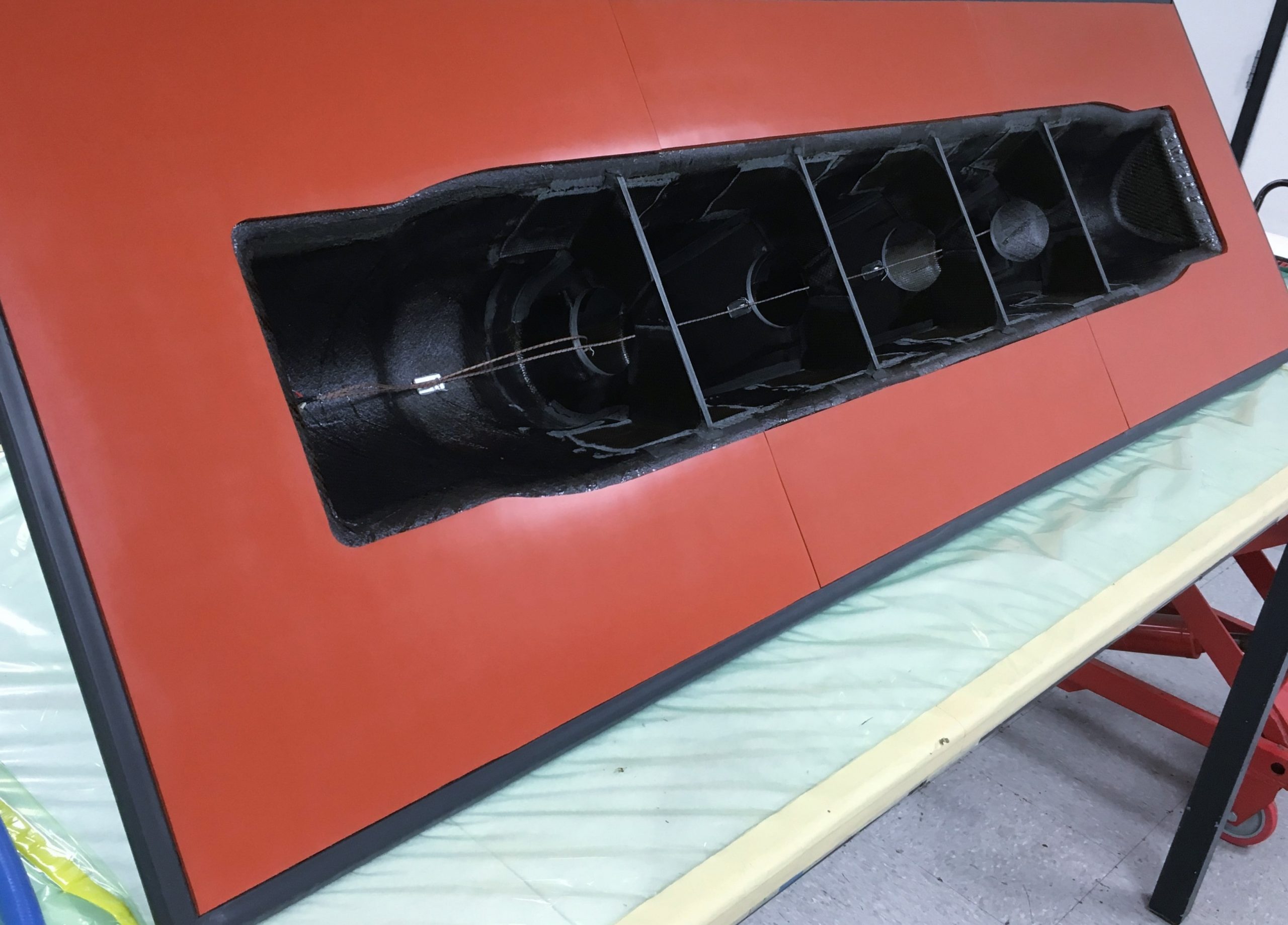

  • Layup tools
  • Metallics & synthetic boards
  • Composite Laminate
    • PrePregs
    • VARTM Infusion
    • Wet Layup and Bag
  • Trim and drill fixtures
  • Includes laser tracking reports and vacuum verification

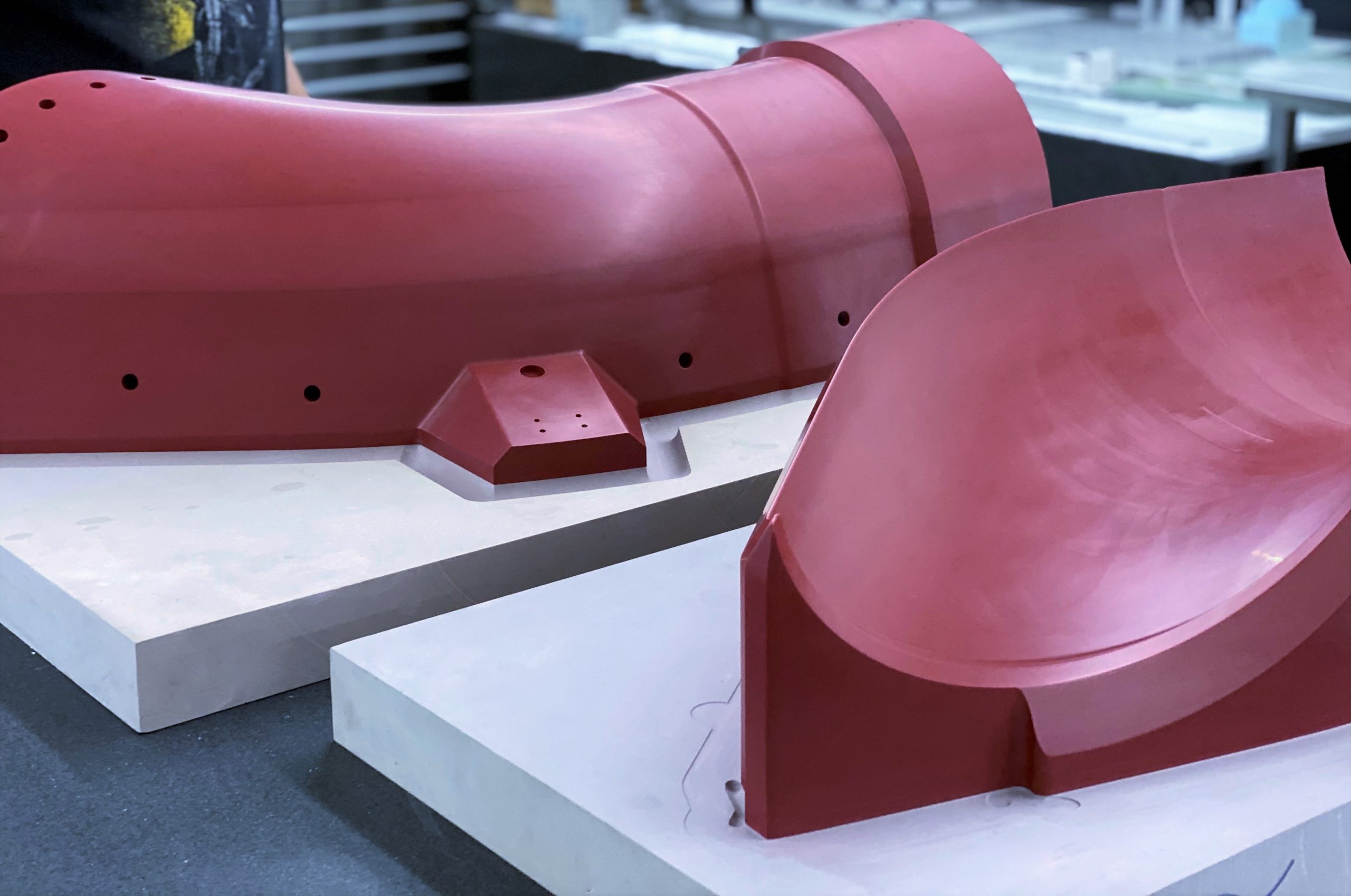

  • Bonding, inspection & machine holding Fixtures

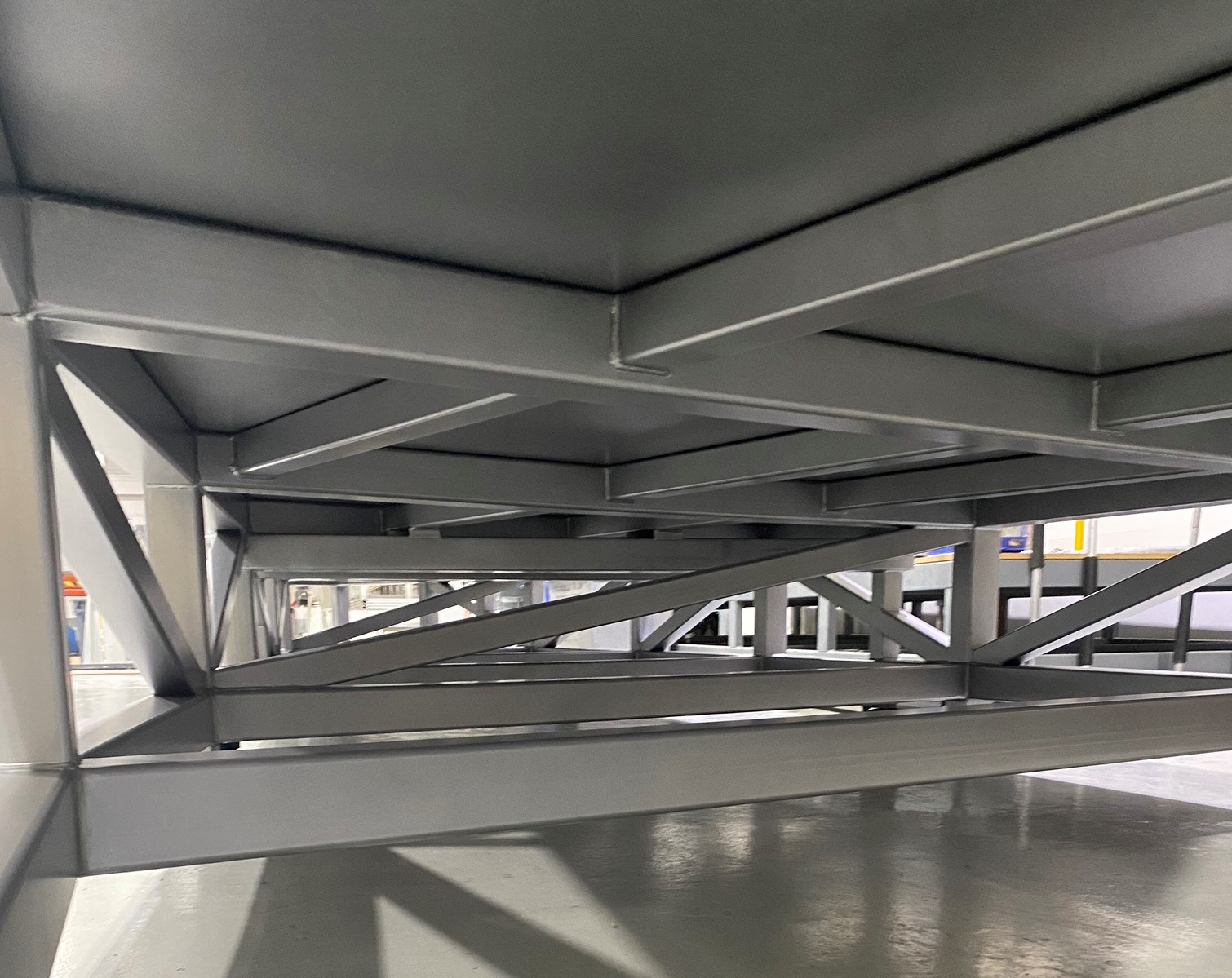

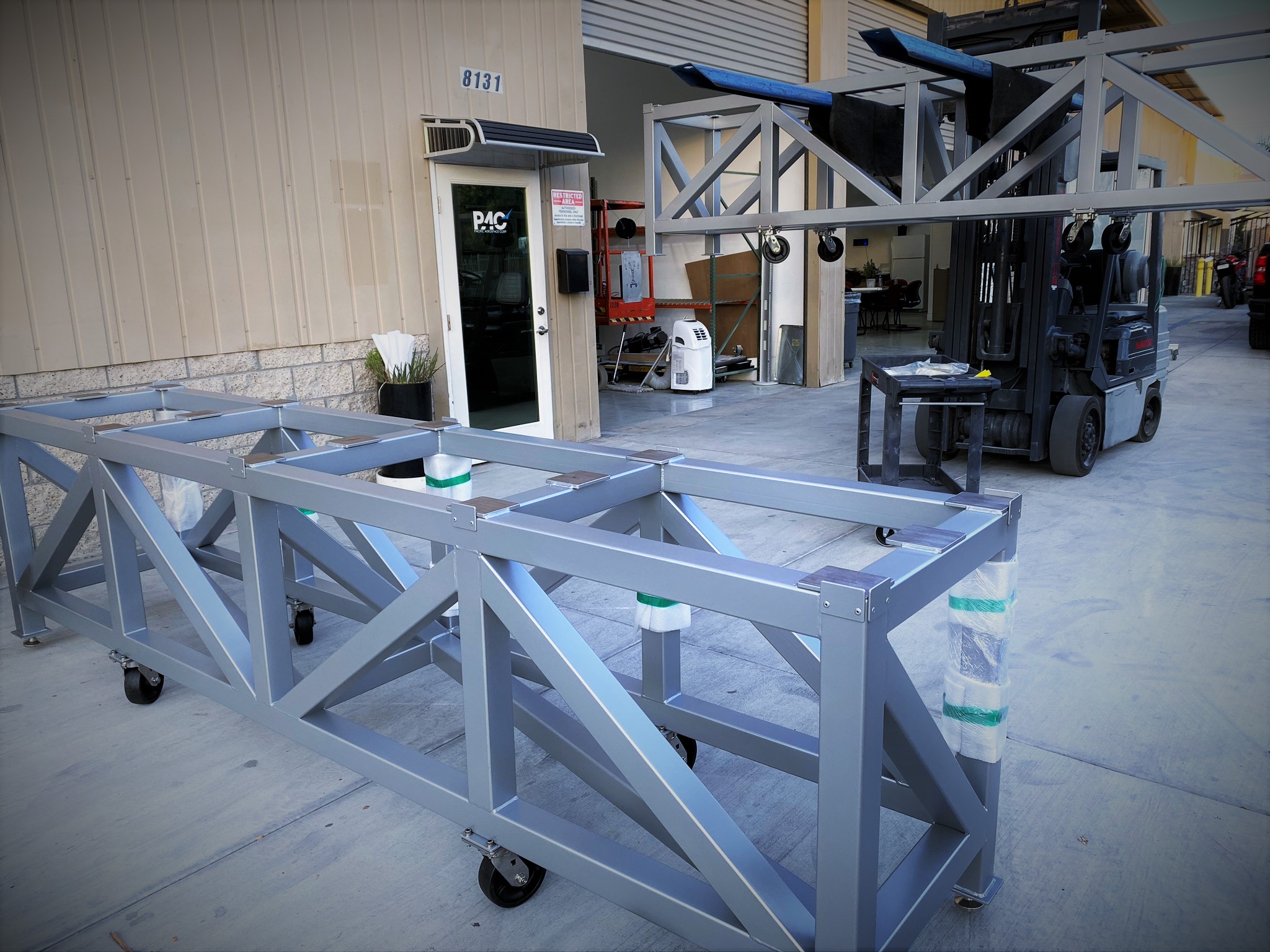

  • Tooling carts
  • Custom crating

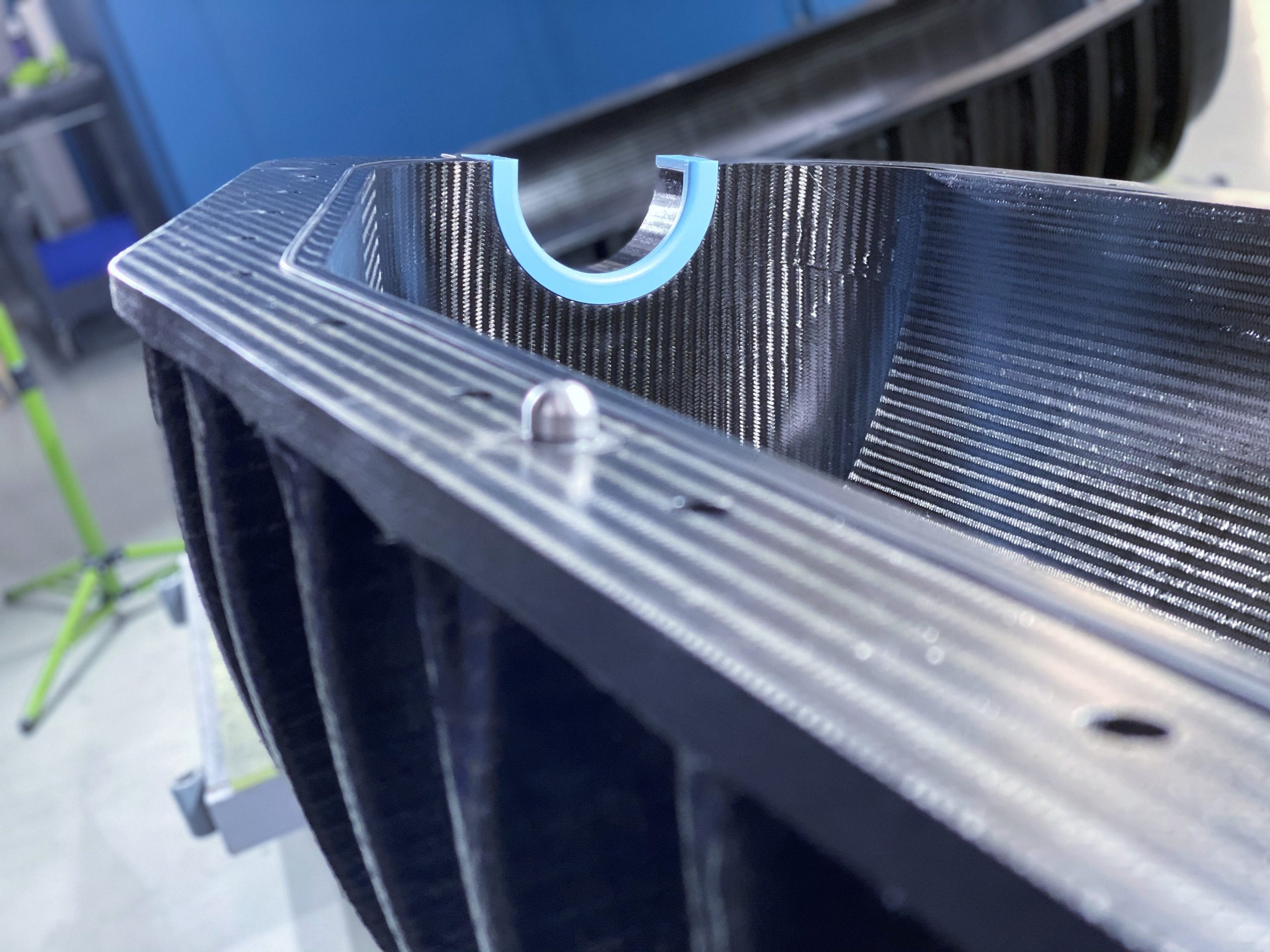

PAC Prepreg Composite Tooling

Tailored to your requirements

  • Industry standard composite tooling fabrication
  • Epoxy, Beta, BMI

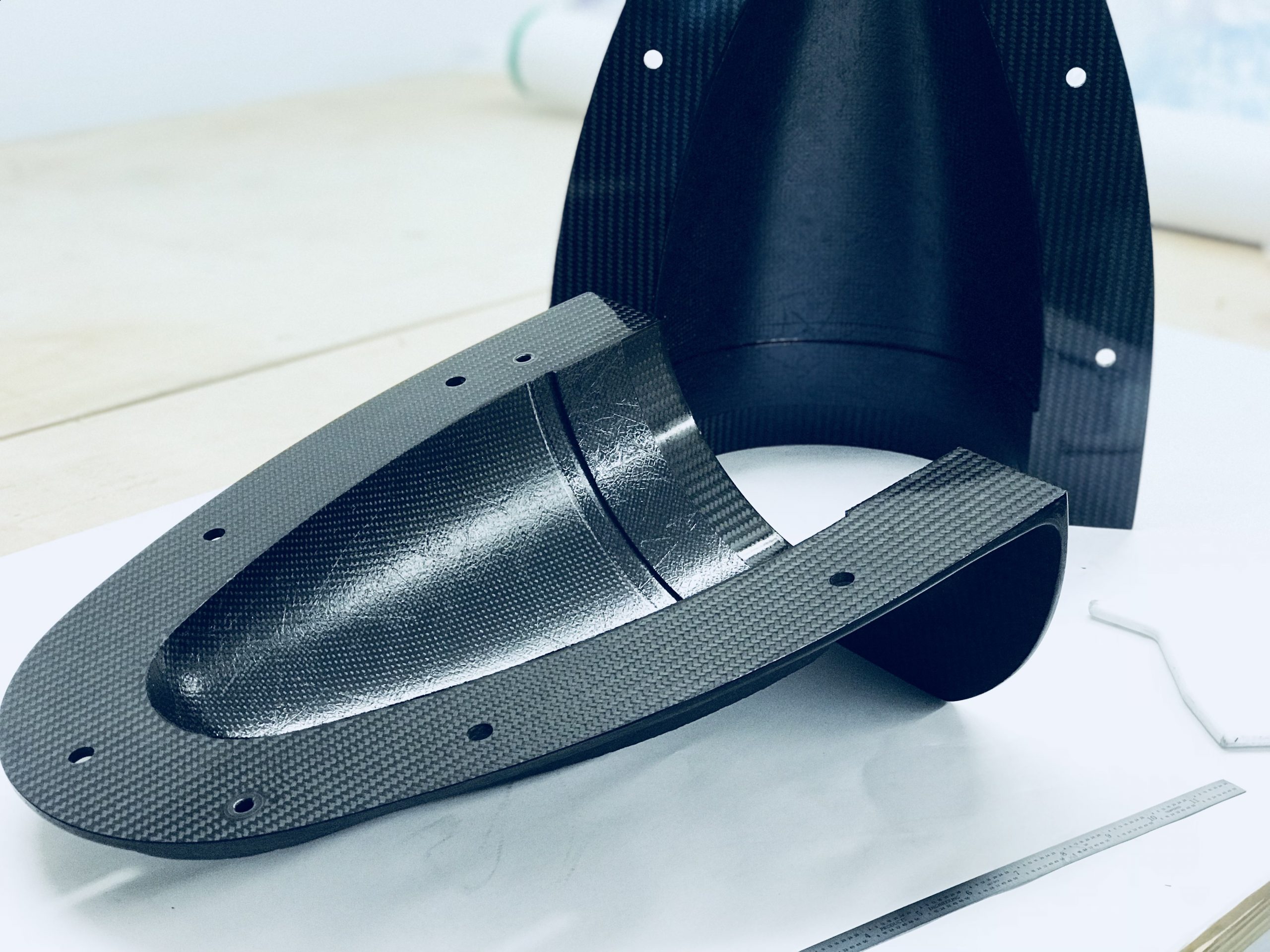

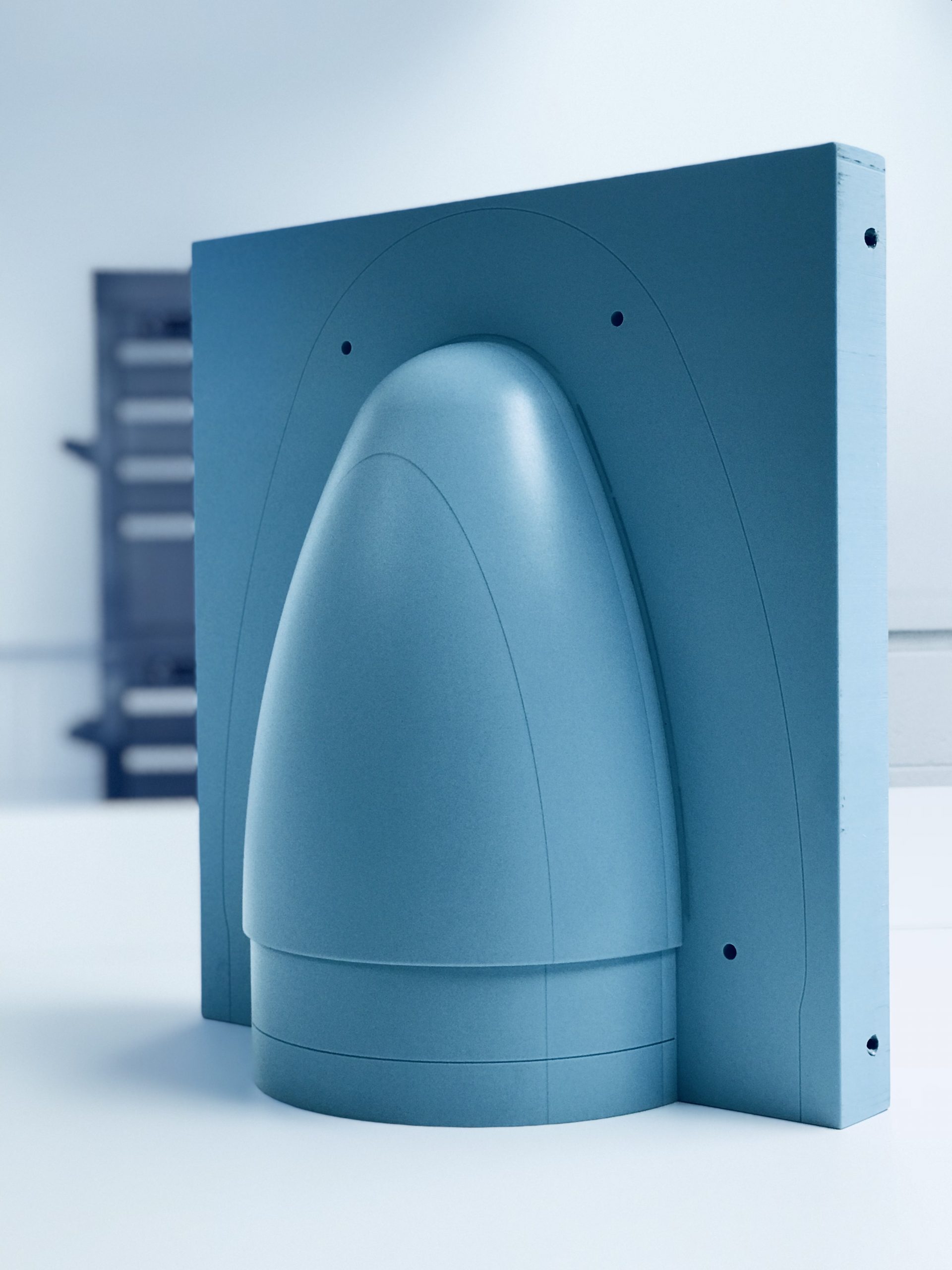

Featured PAC VARTM Infused Composite Tooling

Tailored to your requirements

  • Industry standard composite tooling fabrication
  • Proprietary processes used in accordance
    • Economical Savings
      • No freezer storage***
      • No outlife factor***
      • Lower cost Master material***
  • Lead Time Savings
    • Stocked building materials
    • No 4-8week lead-times on prepreg orders
    • Schedule saving
  • Performance & Quality
    • Up to 350°F service temperatures
    • Surface Profile +-.015” off master ( +- 0.005” machined surface)
  • Various sizes
    • Fabricate tooling up to 20’ in length to 10’ in width
